技术特征
机座范围 | h80~450 | 功率范围 | 0.18~1000kw |
| 额定电压 | 380v（特殊电压定制） | 额定频率 | 50hz（特殊频率定制） |
| 效率等级 | ie4 | 极数 | 2、4、6、8极 |
| 防护等级 | ip55 | 冷却方式 | ic411、ic416 |
| 绝缘等级 | f | 工作方式 | s1 |
| 安装方式 | b3、b5、b35、b14、b34、v1 | 接线方式 | y/∆ |

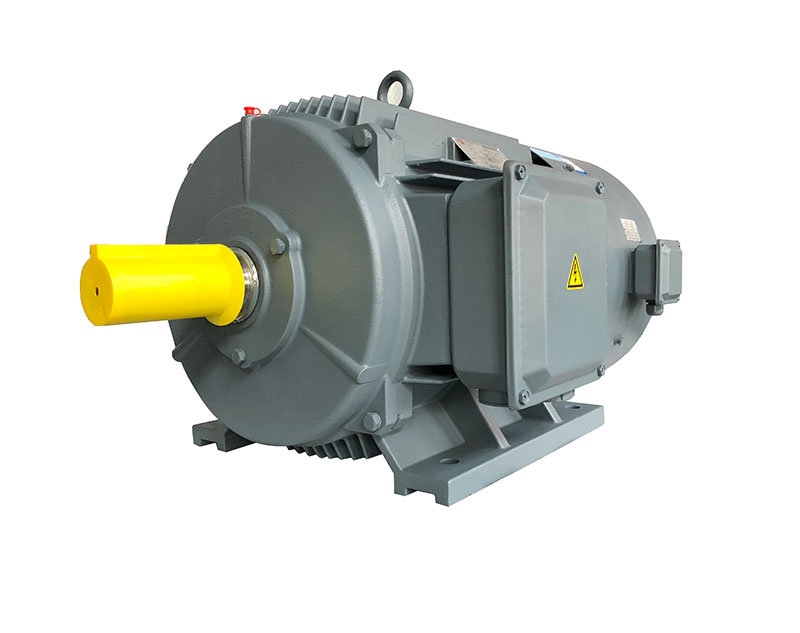

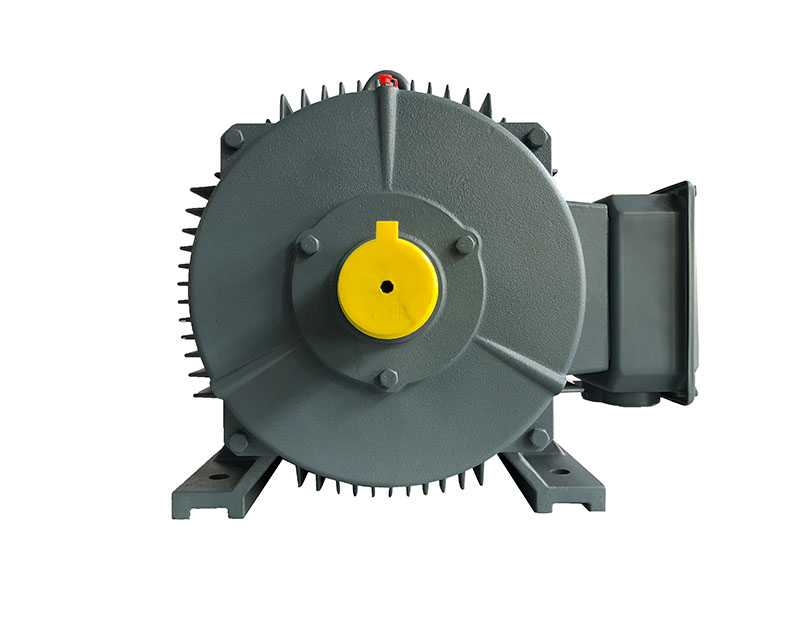

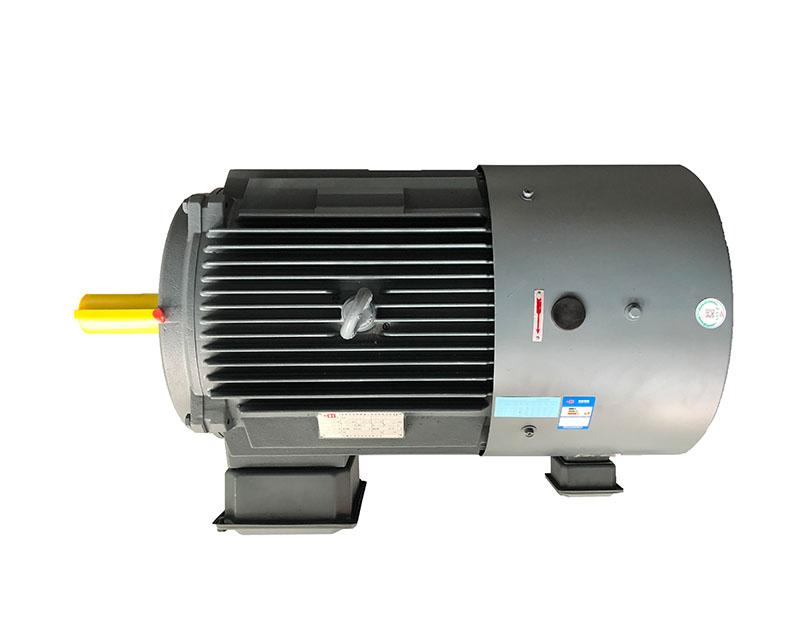

ye4vp系列变频调速三相异步电动机
ye4vp系列电动机是根据国家政策和响应市场的需求，开发研制的高效变频调速电动机。它具有效率高、噪音低，振动小，调速范围广，运行可靠等优点。 ye4vp系列电机采用优越的电磁设计方案、性能优良的原材料、可靠精良的制作工艺及检测措施，以使电机在低速时恒转矩输出及在高频段保持一定的过载能力，在变频器高频载波引起的过电压方面具有很强的适应能力。同时，该系列电机采用独立的风机冷却，以保证电机在低速长期运行时温升不超过允许值。 ye4vp系列电机可方便的安装制动装置，编码器，测速机以实现快速制动和自动控制。该系列电机广泛用于纺织、风机，水泵调节流量及机床、化工冶金、钢铁等行业的恒转矩(基频以下)和恒功率(基频以上)调速，并可以满足造纸、电缆、塑料、包装、电梯、起重等特殊领域的需要。
运行条件
-15°c~ 40°c
环境空气温度
≤90%
(当温度为25°c时)
环境空气月平均最高相对湿度
≤1km
海拔
| 型号 | 极数 | 额定功率 kw | 额定电流 a | 额定转速 r/min | 额定转矩 n.m | 效率 η | 功率因数 cosφ | 防护等级 ip | 绝缘等级 cl. | 工作制 s | 接法 | 额定频率 hz | 恒转矩 hz | 恒功率 hz | 电压 v |
| ye4vp80m1-2 | 2 | 0.75 | 1.6 | 2890 | 2.4 | 83.5% | 0.83 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp80m2-2 | 2 | 1.1 | 2.4 | 2890 | 3.5 | 85.2% | 0.83 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp80m1-4 | 4 | 0.55 | 1.3 | 1440 | 3.5 | 83.9% | 0.74 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp80m2-4 | 4 | 0.75 | 1.8 | 1440 | 4.8 | 85.7% | 0.74 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp80m1-6 | 6 | 0.37 | 1.0 | 920 | 3.5 | 78.0% | 0.70 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp80m2-6 | 6 | 0.55 | 1.4 | 920 | 5.3 | 80.9% | 0.72 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp80m1-8 | 8 | 0.18 | 0.6 | 665 | 1.7 | 67.2% | 0.65 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp80m2-8 | 8 | 0.25 | 0.8 | 665 | 2.4 | 70.8% | 0.65 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp90s-2 | 2 | 1.5 | 3.1 | 2905 | 4.8 | 86.5% | 0.85 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp90l-2 | 2 | 2.2 | 4.4 | 2905 | 7.0 | 88.0% | 0.86 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp90s-4 | 4 | 1.1 | 2.6 | 1450 | 7.0 | 87.2% | 0.75 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp90l-4 | 4 | 1.5 | 3.4 | 1450 | 9.6 | 88.2% | 0.76 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp90s-6 | 6 | 0.75 | 2.0 | 960 | 7.2 | 82.7% | 0.70 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp90l-6 | 6 | 1.1 | 2.8 | 960 | 10.5 | 84.5% | 0.70 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp90s-8 | 8 | 0.37 | 1.2 | 685 | 4.7 | 74.3% | 0.65 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp90l-8 | 8 | 0.55 | 1.7 | 685 | 7.0 | 77.0% | 0.65 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp100l-2 | 2 | 3 | 5.9 | 2905 | 9.6 | 89.1% | 0.87 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp100l1-4 | 4 | 2.2 | 4.7 | 1450 | 14.0 | 89.5% | 0.79 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp100l2-4 | 4 | 3 | 6.3 | 1450 | 19.1 | 90.4% | 0.80 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp100l-6 | 6 | 1.5 | 3.7 | 960 | 14.3 | 85.9% | 0.71 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp100l1-8 | 8 | 0.75 | 2.2 | 705 | 9.6 | 78.4% | 0.66 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp100l2-8 | 8 | 1.1 | 3.1 | 705 | 14.0 | 80.8% | 0.67 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp112m-2 | 2 | 4 | 7.7 | 2915 | 12.7 | 90.0% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp112m-4 | 4 | 4 | 8.3 | 1460 | 25.5 | 91.1% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp112m-6 | 6 | 2.2 | 5.4 | 965 | 21.0 | 87.4% | 0.71 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp112m-8 | 8 | 1.5 | 4.0 | 715 | 19.1 | 82.6% | 0.69 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp132s1-2 | 2 | 5.5 | 10.4 | 2950 | 17.5 | 90.9% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp132s2-2 | 2 | 7.5 | 14.0 | 2950 | 23.9 | 91.7% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp132s-4 | 4 | 5.5 | 11.4 | 1470 | 35.0 | 91.9% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp132m-4 | 4 | 7.5 | 15.2 | 1470 | 47.8 | 92.6% | 0.81 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp132s-6 | 6 | 3 | 7.2 | 975 | 28.7 | 88.6% | 0.71 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp132m1-6 | 6 | 4 | 9.4 | 975 | 38.2 | 89.5% | 0.72 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp132m2-6 | 6 | 5.5 | 12.8 | 975 | 52.5 | 90.5% | 0.72 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp132s-8 | 8 | 2.2 | 5.7 | 730 | 28.0 | 84.5% | 0.70 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp132m-8 | 8 | 3 | 7.6 | 730 | 38.2 | 85.9% | 0.70 | ip55 | f | s1 | y | 50 | 5~50 | 50~100 | 380 |
| ye4vp160m1-2 | 2 | 11 | 20.3 | 2955 | 35.0 | 92.6% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp160m2-2 | 2 | 15 | 27.4 | 2955 | 47.8 | 93.3% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp160l-2 | 2 | 18.5 | 33.7 | 2955 | 58.9 | 93.7% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp160m-4 | 4 | 11 | 21.6 | 1475 | 70.0 | 93.3% | 0.83 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp160l-4 | 4 | 15 | 28.9 | 1475 | 95.5 | 93.9% | 0.84 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp160m-6 | 6 | 7.5 | 16.4 | 975 | 71.6 | 91.3% | 0.76 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp160l-6 | 6 | 11 | 23.5 | 975 | 105.1 | 92.3% | 0.77 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp160m1-8 | 8 | 4 | 9.8 | 725 | 50.9 | 87.1% | 0.71 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp160m2-8 | 8 | 5.5 | 13.1 | 725 | 70.0 | 88.3% | 0.72 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp160l-8 | 8 | 7.5 | 17.2 | 725 | 95.5 | 89.3% | 0.74 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp180m-2 | 2 | 22 | 40.0 | 2960 | 70.0 | 94.0% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp180m-4 | 4 | 18.5 | 35.1 | 1475 | 117.8 | 94.2% | 0.85 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp180l-4 | 4 | 22 | 41.6 | 1475 | 140.1 | 94.5% | 0.85 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp180l-6 | 6 | 15 | 30.7 | 985 | 143.3 | 92.9% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp180l-8 | 8 | 11 | 25.0 | 730 | 140.1 | 90.4% | 0.74 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp200l1-2 | 2 | 30 | 54.2 | 2960 | 95.5 | 94.5% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp200l2-2 | 2 | 37 | 66.6 | 2960 | 117.8 | 94.8% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp200l-4 | 4 | 30 | 56.5 | 1480 | 191.0 | 94.9% | 0.85 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp200l1-6 | 6 | 18.5 | 37.6 | 985 | 176.7 | 93.4% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp200l2-6 | 6 | 22 | 44.0 | 985 | 210.1 | 93.7% | 0.81 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp200l-8 | 8 | 15 | 33.3 | 735 | 191.0 | 91.2% | 0.75 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp225m-2 | 2 | 45 | 80.9 | 2975 | 143.3 | 95.0% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp225s-4 | 4 | 37 | 69.5 | 1485 | 235.6 | 95.2% | 0.85 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp225m-4 | 4 | 45 | 84.3 | 1485 | 286.5 | 95.4% | 0.85 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp225m-6 | 6 | 30 | 59.0 | 985 | 286.5 | 94.2% | 0.82 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp225s-8 | 8 | 18.5 | 40.9 | 735 | 235.6 | 91.7% | 0.75 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp225m-8 | 8 | 22 | 47.8 | 735 | 280.1 | 92.1% | 0.76 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp250m-2 | 2 | 55 | 98.5 | 2975 | 175.1 | 95.3% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp250m-4 | 4 | 55 | 101.5 | 1485 | 350.2 | 95.7% | 0.86 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp250m-6 | 6 | 37 | 71.7 | 990 | 353.4 | 94.5% | 0.83 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp250m-8 | 8 | 30 | 63.9 | 735 | 382.0 | 92.7% | 0.77 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp280s-2 | 2 | 75 | 133.9 | 2980 | 238.8 | 95.6% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp280m-2 | 2 | 90 | 160.4 | 2980 | 286.5 | 95.8% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp280s-4 | 4 | 75 | 136.4 | 1490 | 477.5 | 96.0% | 0.87 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp280m-4 | 4 | 90 | 161.7 | 1490 | 573.0 | 96.1% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp280s-6 | 6 | 45 | 86.9 | 990 | 429.8 | 94.8% | 0.83 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp280m-6 | 6 | 55 | 104.6 | 990 | 525.3 | 95.1% | 0.84 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp280s-8 | 8 | 37 | 77.4 | 740 | 471.1 | 93.1% | 0.78 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp280m-8 | 8 | 45 | 93.9 | 740 | 573.0 | 93.4% | 0.78 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315s-2 | 2 | 110 | 195.6 | 2985 | 350.2 | 96.0% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315m-2 | 2 | 132 | 234.2 | 2985 | 420.2 | 96.2% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315l1-2 | 2 | 160 | 283.6 | 2985 | 509.3 | 96.3% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315l2-2 | 2 | 200 | 353.8 | 2985 | 636.7 | 96.5% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315s-4 | 4 | 110 | 195.0 | 1490 | 700.3 | 96.3% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315m-4 | 4 | 132 | 233.8 | 1490 | 840.4 | 96.4% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315l1-4 | 4 | 160 | 279.6 | 1490 | 1018.7 | 96.6% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315l2-4 | 4 | 200 | 349.2 | 1490 | 1273.3 | 96.7% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315s-6 | 6 | 75 | 142.2 | 990 | 716.3 | 95.4% | 0.84 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315m-6 | 6 | 90 | 168.3 | 990 | 859.5 | 95.6% | 0.85 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315l1-6 | 6 | 110 | 205.2 | 990 | 1050.5 | 95.8% | 0.85 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315l2-6 | 6 | 132 | 242.9 | 990 | 1260.6 | 96.0% | 0.86 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315s-8 | 8 | 55 | 111.5 | 745 | 700.3 | 93.7% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315m-8 | 8 | 75 | 151.2 | 745 | 955.0 | 94.2% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315l1-8 | 8 | 90 | 178.8 | 745 | 1146.0 | 94.4% | 0.81 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315l2-8 | 8 | 110 | 217.9 | 745 | 1400.7 | 94.7% | 0.81 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp315l3-8 | 8 | 132 | 260.9 | 745 | 1680.8 | 94.9% | 0.81 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355m-2 | 2 | 250 | 432.6 | 2990 | 795.8 | 96.5% | 0.91 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355m2-2 | 2 | 280 | 484.5 | 2990 | 891.3 | 96.5% | 0.91 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355l-2 | 2 | 315 | 545.0 | 2990 | 1002.8 | 96.5% | 0.91 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355l2-2 | 2 | 355 | 621.1 | 2990 | 1130.1 | 96.5% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355m0-4 | 4 | 220 | 384.1 | 1490 | 1400.7 | 96.7% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355m-4 | 4 | 250 | 436.5 | 1490 | 1591.7 | 96.7% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355m2-4 | 4 | 280 | 488.8 | 1490 | 1782.7 | 96.7% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355l-4 | 4 | 315 | 549.9 | 1490 | 2005.5 | 96.7% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355l2-4 | 4 | 355 | 633.9 | 1490 | 2260.2 | 96.7% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355m1-6 | 6 | 160 | 293.8 | 990 | 1528.0 | 96.2% | 0.86 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355m2-6 | 6 | 200 | 366.9 | 990 | 1910.0 | 96.3% | 0.86 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355l-6 | 6 | 250 | 457.7 | 990 | 2387.5 | 96.5% | 0.86 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355l2-6 | 6 | 280 | 524.3 | 990 | 2674.0 | 96.6% | 0.84 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355m1-8 | 8 | 132 | 260.9 | 745 | 1680.8 | 94.9% | 0.81 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355m2-8 | 8 | 160 | 311.7 | 745 | 2037.3 | 95.1% | 0.82 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355m3-8 | 8 | 185 | 359.3 | 745 | 2355.7 | 95.4% | 0.82 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355l-8 | 8 | 200 | 388.5 | 745 | 2546.7 | 95.4% | 0.82 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355l2-8 | 8 | 220 | 427.3 | 745 | 2801.3 | 95.4% | 0.82 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x1-4 | 4 | 355 | 633.9 | 1490 | 2260.2 | 96.7% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x2-4 | 4 | 400 | 714.2 | 1490 | 2546.7 | 96.7% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x3-4 | 4 | 450 | 803.5 | 1490 | 2865.0 | 96.7% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x4-4 | 4 | 500 | 892.7 | 1490 | 3183.3 | 96.7% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x1-2 | 2 | 355 | 621.1 | 2990 | 1130.1 | 96.5% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x2-2 | 2 | 400 | 699.8 | 2990 | 1273.3 | 96.5% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x3-2 | 2 | 450 | 787.2 | 2990 | 1432.5 | 96.5% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x4-2 | 2 | 500 | 874.7 | 2990 | 1591.7 | 96.5% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x1-4 | 4 | 355 | 633.9 | 1490 | 2260.2 | 96.7% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x2-4 | 4 | 375 | 669.6 | 1490 | 2387.5 | 96.7% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x1-6 | 6 | 315 | 604.2 | 995 | 3008.3 | 96.6% | 0.82 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x2-6 | 6 | 355 | 680.9 | 995 | 3390.3 | 96.6% | 0.82 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x21-6 | 6 | 380 | 720.1 | 995 | 3629.0 | 96.6% | 0.83 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x3-6 | 6 | 400 | 758.0 | 995 | 3820.0 | 96.6% | 0.83 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x1-8 | 8 | 220 | 427.3 | 745 | 2801.3 | 95.4% | 0.82 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x2-8 | 8 | 250 | 497.7 | 745 | 3183.3 | 95.4% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x3-8 | 8 | 280 | 557.4 | 745 | 3565.3 | 95.4% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp355x4-8 | 8 | 315 | 627.1 | 745 | 4011.0 | 95.4% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400m1-2 | 2 | 355 | 621.1 | 2990 | 1130.1 | 96.5% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400m2-2 | 2 | 400 | 699.8 | 2990 | 1273.3 | 96.5% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400m3-2 | 2 | 450 | 787.2 | 2990 | 1432.5 | 96.5% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l-2 | 2 | 500 | 874.7 | 2990 | 1591.7 | 96.5% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l1-2 | 2 | 560 | 968.9 | 2990 | 1782.7 | 96.5% | 0.91 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l2-2 | 2 | 630 | 1090.0 | 2990 | 2005.5 | 96.5% | 0.91 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l3-2 | 2 | 710 | 1228.5 | 2990 | 2260.2 | 96.5% | 0.91 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400m1-4 | 4 | 355 | 633.9 | 1490 | 2260.2 | 96.7% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400m2-4 | 4 | 400 | 714.2 | 1490 | 2546.7 | 96.7% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400m3-4 | 4 | 450 | 803.5 | 1490 | 2865.0 | 96.7% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l1-4 | 4 | 500 | 892.7 | 1490 | 3183.3 | 96.7% | 0.88 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l2-4 | 4 | 560 | 988.6 | 1490 | 3565.3 | 96.7% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l3-4 | 4 | 630 | 1112.2 | 1490 | 4011.0 | 96.7% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400m1-6 | 6 | 315 | 604.2 | 995 | 3008.3 | 96.6% | 0.82 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400m2-6 | 6 | 355 | 680.9 | 995 | 3390.3 | 96.6% | 0.82 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l1-6 | 6 | 400 | 758.0 | 995 | 3820.0 | 96.6% | 0.83 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l2-6 | 6 | 450 | 852.8 | 995 | 4297.5 | 96.6% | 0.83 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l3-6 | 6 | 500 | 947.5 | 995 | 4775.0 | 96.6% | 0.83 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l4-6 | 6 | 550 | 1042.3 | 995 | 5252.5 | 96.6% | 0.83 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400m1-8 | 8 | 250 | 497.7 | 745 | 3183.3 | 95.4% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400m2-8 | 8 | 280 | 557.4 | 745 | 3565.3 | 95.4% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l1-8 | 8 | 315 | 627.1 | 745 | 4011.0 | 95.4% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l2-8 | 8 | 355 | 706.7 | 745 | 4520.3 | 95.4% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp400l3-8 | 8 | 400 | 796.3 | 745 | 5093.3 | 95.4% | 0.80 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp450x1-4 | 4 | 710 | 1253.5 | 1490 | 4520.3 | 96.7% | 0.89 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp450x2-4 | 4 | 800 | 1396.7 | 1490 | 5093.3 | 96.7% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp450x3-4 | 4 | 900 | 1571.2 | 1490 | 5730.0 | 96.7% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp450x4-4 | 4 | 1000 | 1745.8 | 1490 | 6366.7 | 96.7% | 0.90 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp450x1-6 | 6 | 630 | 1179.6 | 995 | 6016.5 | 96.6% | 0.84 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp450x2-6 | 6 | 670 | 1254.5 | 995 | 6398.5 | 96.6% | 0.84 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp450x3-6 | 6 | 710 | 1329.4 | 995 | 6780.5 | 96.6% | 0.84 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp450x4-6 | 6 | 750 | 1404.3 | 995 | 7162.5 | 96.6% | 0.84 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp450x5-6 | 6 | 800 | 1498.0 | 995 | 7640.0 | 96.6% | 0.84 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp450x1-8 | 8 | 450 | 884.8 | 745 | 5730.0 | 95.4% | 0.81 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp450x2-8 | 8 | 500 | 983.1 | 745 | 6366.7 | 95.4% | 0.81 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp450x3-8 | 8 | 560 | 1101.1 | 745 | 7130.7 | 95.4% | 0.81 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
| ye4vp450x4-8 | 8 | 630 | 1238.7 | 745 | 8022.0 | 95.4% | 0.81 | ip55 | f | s1 | ∆ | 50 | 5~50 | 50~100 | 380 |
